Suitable for DC48V single color PWM LED strip.
Controlled by Tuya APP directly.
Support Push dimming.
Multiple intelligent functions like timer, device sharing, music rhythm and voice control etc.
Compatible with our 2.4G RF remote control.

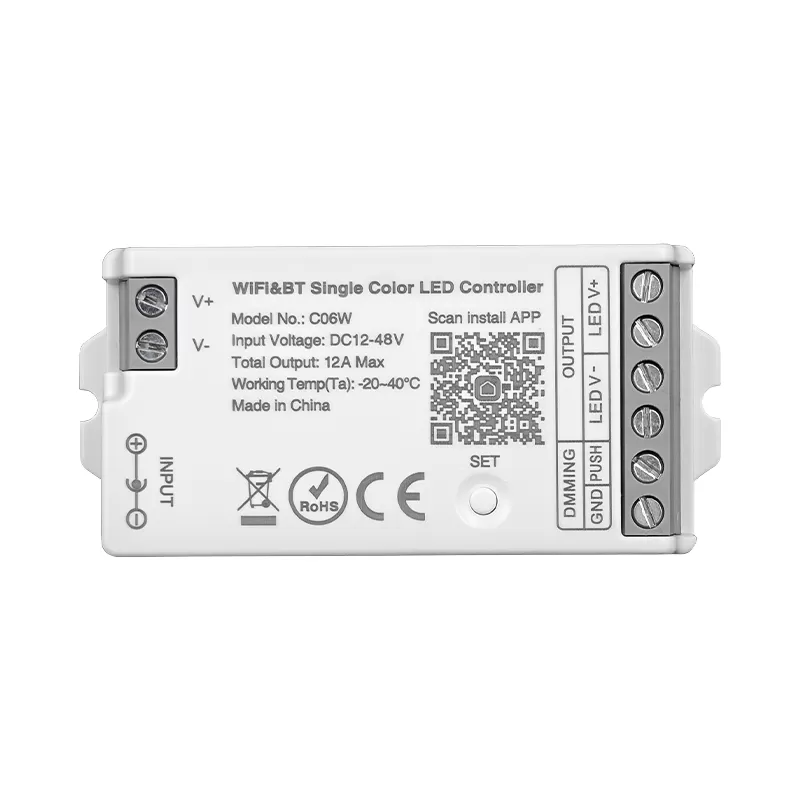

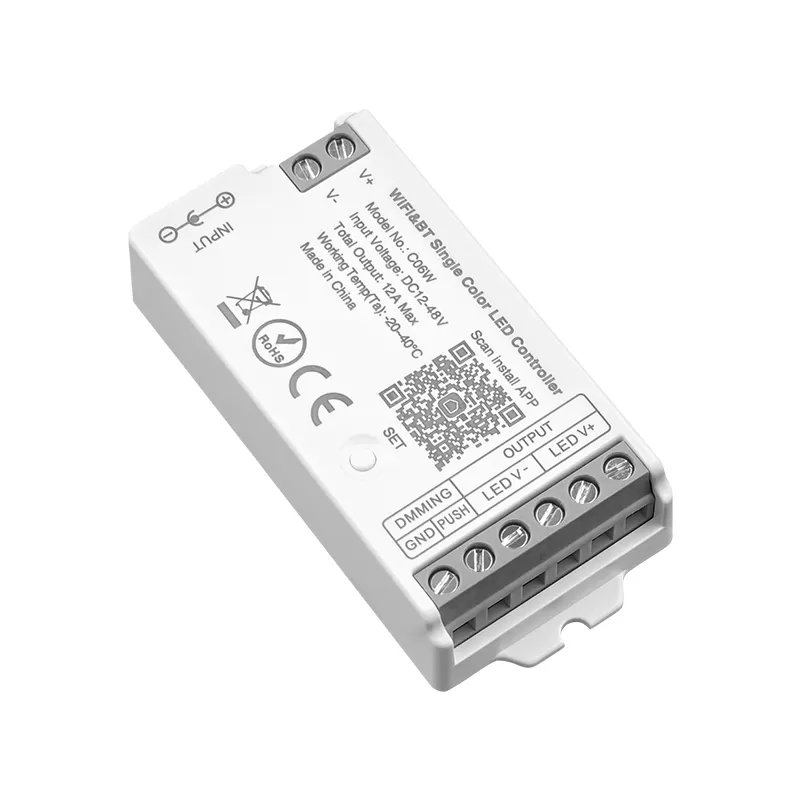

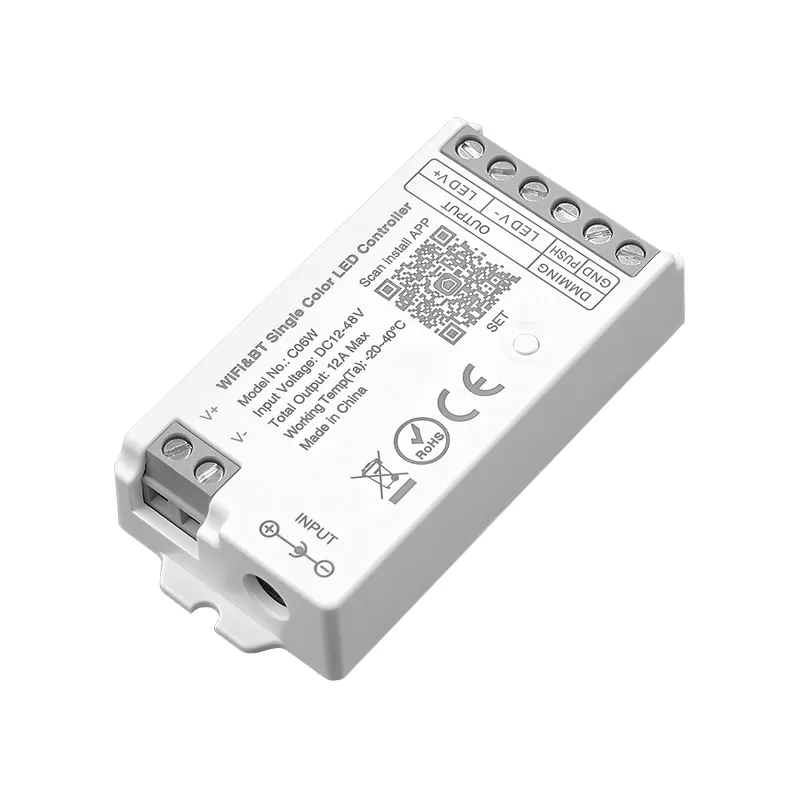

Model No. | C06W |
Input Voltage | DC12-48V |
Input Current | Wiring connection port: 12A/DC socket: 5A |
Output Voltage | DC12-48V |
Output Current | 12A MAX |
Output Power | 144W@12V, 288W@24V, 432W@36V. 576W@48V |
Output Type | Constant Voltage |
Input Signal | WiFi & 2.4G |
Control Distance | 30M(RF remote) |
Dimming Range | 1%~100% |
PWM Frequency | 500Hz |
IP Rating | IP20 |
Warranty | 3-year |
Certification | CE, RoHs, FCC, UKCA |
