LAIMI’s 5 in 1 LED controller supports single-color, CCT, RGB, RGBW, and RGBCCT LED strips through one switchable platform. Available in RF, WiFi, Zigbee, and Bluetooth Mesh versions, it simplifies product selection and inventory management for distributors, installers, and smart-lighting projects.
The WiFi 5 in 1 LED controller also supports app control, voice commands, scenes, timers, and group management, providing flexible control for residential, commercial, and decorative LED strip applications.
LAIMI offers RF, WiFi, Zigbee, and Bluetooth Mesh versions of the 5 in 1 LED controller. Each version supports five selectable output modes—single-color, CCT, RGB, RGBW, and RGBCCT—while providing different control methods for residential, commercial, and smart-lighting projects.
| Version | Model | Main Control Method | Gateway Requirement | Recommended For |
| RF 5-in-1 Controller | LM051 | 2.4G RF remote | Not required for basic remote control | Simple local and multi-zone lighting |
| WiFi 5-in-1 Controller | WB5 | App, voice, Bluetooth, and compatible RF remote | No separate gateway for basic app control | Smart homes and remote lighting management |
| Zigbee 5-in-1 Controller | LM052 | Zigbee gateway, app, automation, and voice | Required | Multi-device smart-lighting networks |
| Bluetooth Mesh 5-in-1 Controller | LM053 | Bluetooth Mesh app and compatible remote | Gateway required for selected remote and voice functions | Grouped and synchronized lighting systems |
The WiFi 5 in 1 LED controller is suitable for users who prioritize direct app access and remote management. Zigbee and Bluetooth Mesh versions are better suited to projects requiring device grouping, automation, and scalable wireless networking.

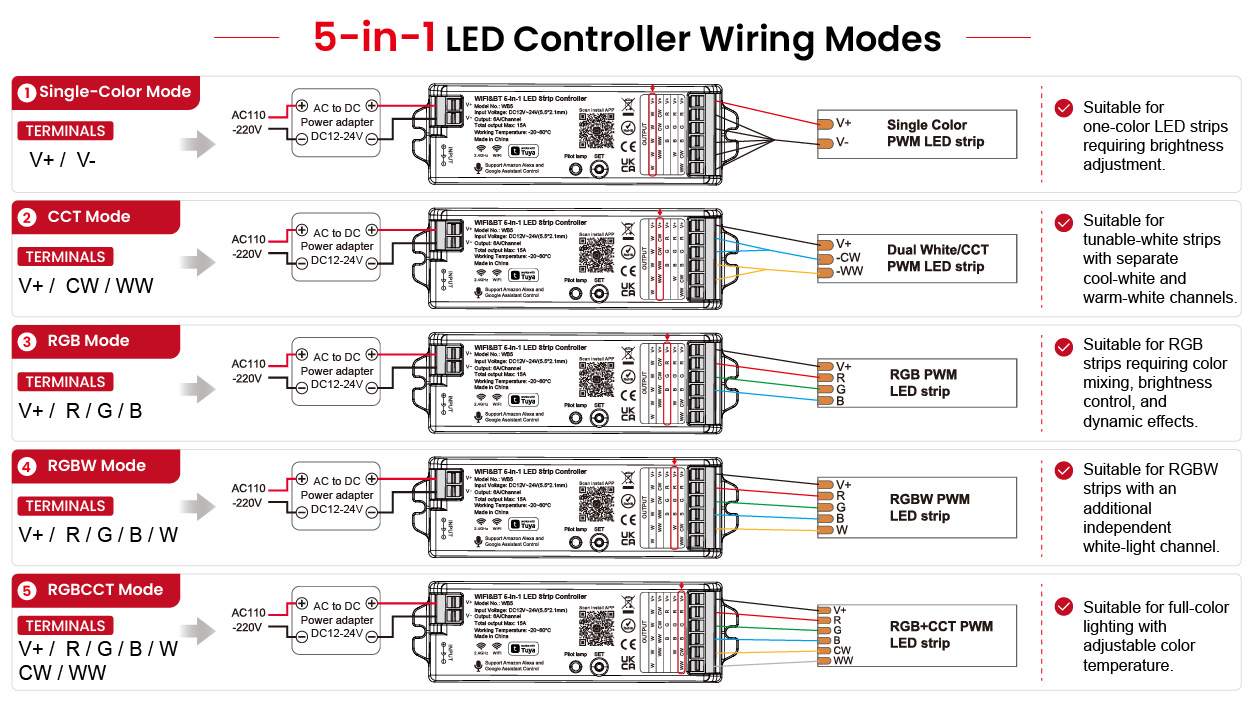

A LAIMI 5-in-1 controller can switch between five output modes, allowing one controller platform to work with common constant-voltage LED strip configurations.
| Output Mode | Compatible LED Strip | Channels | Main Control Functions |
| Single Color | Monochrome LED strip | 1CH | Brightness and on/off control |
| CCT | Tunable-white LED strip | 2CH | Brightness and color-temperature adjustment |
| RGB | RGB LED strip | 3CH | Color, brightness, scenes, and effects |
| RGBW | RGB plus white LED strip | 4CH | RGB effects and independent white-light control |
| RGBCCT | RGB plus tunable-white LED strip | 5CH | Full-color and adjustable white-light control |
Single-Color Mode
V+ / CH1
Suitable for one-color LED strips requiring brightness adjustment.
CCT Mode
V+ / CW / WW
Suitable for tunable-white strips with separate cool-white and warm-white channels.
RGB Mode
V+ / R / G / B
Suitable for RGB strips requiring color mixing, brightness control, and dynamic effects.
RGBW Mode
V+ / R / G / B / W
Suitable for RGB strips with an additional independent white-light channel.
RGBCCT Mode
V+ / R / G / B / CW / WW
Suitable for full-color lighting with adjustable color temperature.
Built for demanding commercial lighting projects, LAIMI’s 5 in 1 LED controller features a durable, fire-retardant ABS housing and a tamper-resistant structure for safer, more reliable installation. Its screwless terminals simplify wiring, while five selectable output modes support single-color, CCT, RGB, RGBW, and RGBCCT LED strips.
The compact, patented housing fits neatly into retail stores, hotels, malls, restaurants, and other commercial spaces where installation efficiency, safety, and a clean appearance are essential.
Choosing the right controller requires more than confirming the LED strip type. Buyers should also check the input voltage, total power, preferred control method, required smart functions, and project scale.
| Selection Factor | What Buyers Should Check |
| LED Strip Type | Single-color, CCT, RGB, RGBW, or RGBCCT |
| Input Voltage | Match the controller, power supply, and LED strip voltage |
| Total Wattage | Keep the connected load below the controller’s rated output |
| Output Mode | Select the correct mode before connecting the LED strip |
| Control Method | RF, WiFi, Zigbee, or Bluetooth Mesh |
| Smart Functions | App, voice, scenes, timers, music mode, and group control |
| Project Scale | Single room, multiple zones, or a complete smart-lighting system |
| Installation Space | Check controller dimensions, wiring access, and ventilation |
| Target Platform | Confirm gateway, app, and voice-assistant compatibility |
For projects requiring smartphone operation, scenes, timers, and remote management, the WiFi 5 in 1 LED strip controller offers flexible control for multiple LED strip configurations.
Send us the following information:
LED strip type
Input voltage
Wattage per meter
Total strip length
Required control method
Number of lighting zones
Smart-home platform
Target market and certification requirements
The LAIMI technical team will recommend a suitable controller and wiring configuration.
Different controller versions provide different combinations of local control, app access, voice operation, networking, and automation.
| Control Function | RF LM051 | WiFi WB5 | Zigbee LM052 | Bluetooth Mesh LM053 |
| Local Remote Control | Yes | Compatible models | Compatible models | Compatible models |
| Mobile App Control | Via optional gateway | Yes | Via Zigbee gateway | Yes |
| Voice Control | Via compatible gateway | Yes | Via compatible gateway | Via compatible gateway |
| Brightness Control | Yes | Yes | Yes | Yes |
| Color and CCT Adjustment | Yes | Yes | Yes | Yes |
| Scene Control | Yes | Yes | Yes | Yes |
| Timer and Schedule | Depends on system | Yes | Yes | Yes |
| Music Mode | Depends on system | Yes | Depends on platform | Yes |
| Device Sharing | Via compatible gateway | Yes | Depends on platform | Yes |
| Group Control | Yes | Yes | Yes | Yes |
| Remote Internet Access | Via gateway | Yes | Via gateway | Via gateway |
| Mesh Networking | No | No | Yes | Yes |
| Multi-Zone Control | Yes | Yes | Yes | Yes |
A 5 in 1 LED controller supports five output modes: single-color, CCT, RGB, RGBW, and RGBCCT. One controller can therefore work with several common LED strip configurations.
Briefly press the SET button to switch modes. The indicator shows the selected output: white for single-color, yellow for CCT, red for RGB, green for RGBW, and blue for RGBCCT.
LAIMI offers four versions: RF LM051, WiFi WB5, Zigbee LM052, and Bluetooth Mesh LM053. The WiFi 5 in 1 LED controller supports smart app-based lighting control.
The controller supports a maximum output current of 15A. It can handle up to 180W at DC12V or 360W at DC24V, depending on the connected LED strip and wiring.
It is compatible with single-color, CCT, RGB, RGBW, and RGBCCT constant-voltage LED strips. Confirm the strip voltage, channel type, and total wattage before installation.
Yes. Users can change the output mode to match different strip types. However, only one output mode should be used at a time, and the wiring must match the selected mode.
Yes. The WiFi 5 in 1 LED strip controller supports compatible app control, scenes, timers, grouping, and voice operation. Available functions may vary by model and smart-home platform.
