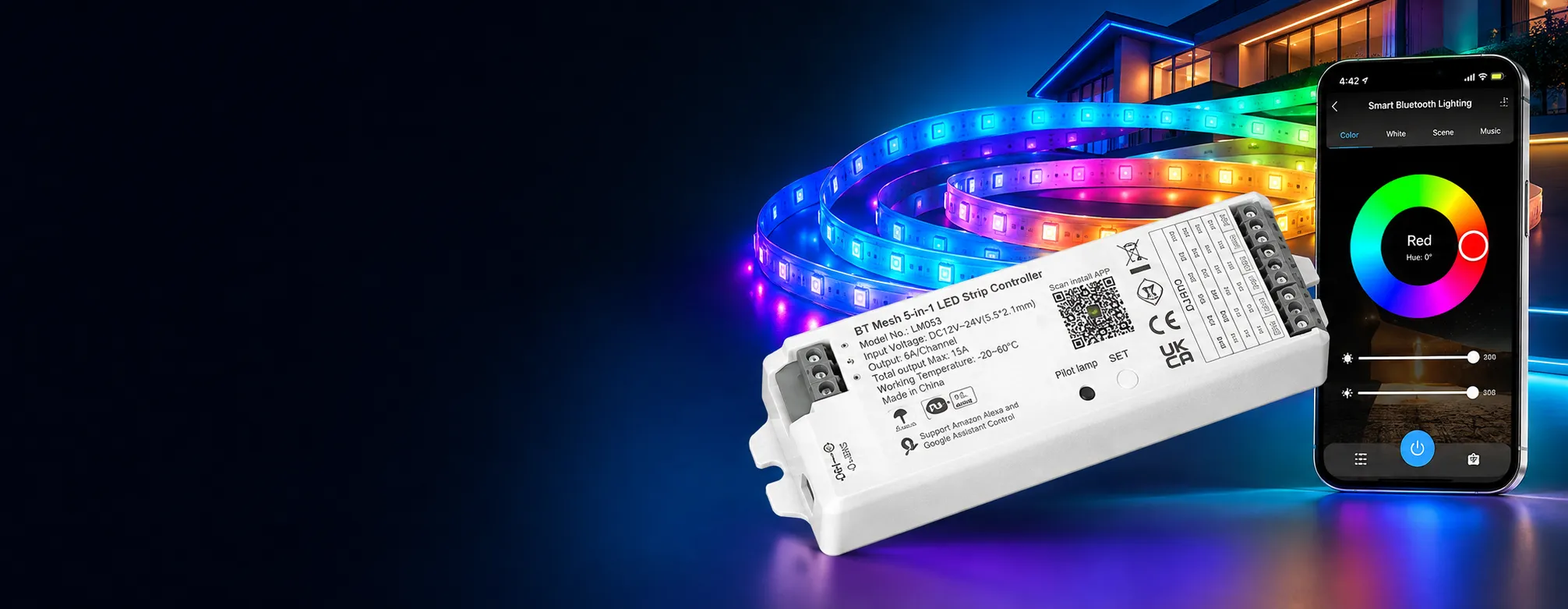

LAIMI Bluetooth LED controllers support single-color, CCT, RGB, RGBW, and RGBCCT LED strips with convenient app-based wireless control. Each Bluetooth light controller enables dimming, color adjustment, scenes, grouping, and synchronized effects, making our LED strip Bluetooth controller solutions suitable for residential, commercial, and multi-zone smart lighting projects.
Choosing the right LED strip Bluetooth controller starts with matching the controller to the LED strip type, voltage, channel configuration, and total load. For smart lighting projects, buyers should also consider app control, grouping, scene functions, and whether multi-zone control is required.
| Selection Factor | What to Check |
| LED Strip Type | Single Color, CCT, RGB, RGBW or RGBCCT |
| Output Channels | Match the controller channels to the LED strip |
| Input Voltage | Match the controller, LED strip and power supply |
| Total Load | Keep the connected LED load below the rated output |
| Control Method | Bluetooth App, compatible remote or combined control |
| Smart Functions | Dimming, color, scenes, timers, music and grouping |
| Project Scale | Single room, multiple zones or larger lighting networks |
| Installation | Controller size, wiring space and operating environment |
For RGB lighting projects, an LED RGB Bluetooth controller should match both the strip voltage and channel configuration to ensure stable color and brightness control.
Bluetooth Mesh allows compatible lighting devices to communicate within a connected network rather than relying on a single point-to-point connection. Multiple Bluetooth controllers can be organized into rooms, groups, or lighting zones for more flexible system management.
This makes a Bluetooth LED controller suitable for multi-room residential lighting, retail displays, hospitality projects, and other applications where several LED strips need to be controlled individually or together.
Flexible Multi-Zone Lighting
With compatible Bluetooth Mesh products, users can:
Control individual lighting zones
Group several controllers together
Synchronize brightness and color changes
Create separate scenes for different areas
Expand the lighting system with additional devices
Improve communication coverage through the mesh network
A properly configured Bluetooth lighting network makes it easier to manage multiple Bluetooth LED controller zones without operating every controller separately.
LAIMI Bluetooth controllers provide convenient wireless control for different lighting requirements. Selected models support mobile-app operation together with compatible RF remotes or gateways, giving users both smart and local control options.
| Control Method | Main Functions |
| Bluetooth App | On/off, dimming, color and CCT adjustment |
| Scene Control | Save and activate different lighting scenes |
| Group Control | Manage several controllers together |
| Timer & Schedule | Set automatic lighting operation |
| Music Mode | Synchronize compatible lighting effects with music |
| RF Remote | Fast local operation on compatible models |
| Voice Control | Available through compatible gateways and platforms |
| Remote Access | Available on supported gateway configurations |
This flexible Bluetooth LED light control system is suitable for users who want convenient smartphone operation without sacrificing simple local control.
App functions, voice control, remote compatibility and gateway requirements vary by model.
LAIMI provides controller options for common constant-voltage LED strip types. Selecting the correct channel configuration ensures accurate dimming, color mixing, and color-temperature control.
| LED Strip Type | Recommended Controller | Channels | Main Control |
| Single Color | Bluetooth Single-Color Controller | 1CH | Brightness |
| CCT | Bluetooth CCT Controller | 2CH | Brightness + Color Temperature |
| RGB | Bluetooth RGB Controller | 3CH | RGB Color + Brightness |
| RGBW | Bluetooth RGBW Controller | 4CH | RGB + Independent White |
| RGBCCT | Bluetooth RGBCCT Controller | 5CH | RGB + Tunable White |
For decorative and commercial color lighting, an RGB LED strip Bluetooth controller provides wireless adjustment of brightness, colors, and scenes through compatible control platforms.
A multi-function controller can also be selected when one project needs to support several LED strip configurations.
Different controller versions provide different combinations of local control, app access, voice operation, networking, and automation.
| Control Function | RF LM051 | WiFi WB5 | Zigbee LM052 | Bluetooth Mesh LM053 |
| Local Remote Control | Yes | Compatible models | Compatible models | Compatible models |
| Mobile App Control | Via optional gateway | Yes | Via Zigbee gateway | Yes |
| Voice Control | Via compatible gateway | Yes | Via compatible gateway | Via compatible gateway |
| Brightness Control | Yes | Yes | Yes | Yes |
| Color and CCT Adjustment | Yes | Yes | Yes | Yes |
| Scene Control | Yes | Yes | Yes | Yes |
| Timer and Schedule | Depends on system | Yes | Yes | Yes |
| Music Mode | Depends on system | Yes | Depends on platform | Yes |
| Device Sharing | Via compatible gateway | Yes | Depends on platform | Yes |
| Group Control | Yes | Yes | Yes | Yes |
| Remote Internet Access | Via gateway | Yes | Via gateway | Via gateway |
| Mesh Networking | No | No | Yes | Yes |
| Multi-Zone Control | Yes | Yes | Yes | Yes |
A Bluetooth LED controller allows compatible LED strips to be controlled wirelessly through a smartphone app or other supported devices. Functions may include dimming, color adjustment, scenes, grouping, and timers.
LAIMI offers Bluetooth controllers for single-color, CCT, RGB, RGBW, and RGBCCT LED strips. The correct model depends on the strip voltage, channel type, and total load.
Basic Bluetooth app control may not require a gateway. A compatible gateway may be needed for remote internet access, voice control, or additional smart-home functions.
Yes. Compatible controllers can be grouped by room or lighting zone for individual or synchronized control. The available grouping functions depend on the app and controller model.
Bluetooth Mesh allows compatible devices to communicate as part of a connected network. It is useful for multi-device and multi-zone lighting systems that require scalable wireless control.
Yes. Compatible Bluetooth Mesh controllers can be assigned to different zones or groups and controlled separately or together through the supported app.
Bluetooth is well suited to local app control and mesh-based device grouping, while WiFi focuses more on direct internet-connected control. The better option depends on project size and smart-control requirements.
Yes. LAIMI supports OEM and ODM requirements including controller functions, output configuration, branding, labels, packaging, and selected app or gateway compatibility.
