Name: Bluetooth Mesh 5 in 1 LED Controller
Brand: Shenzhen You Lai Mi Technology Co., Ltd.
Availability: InStock

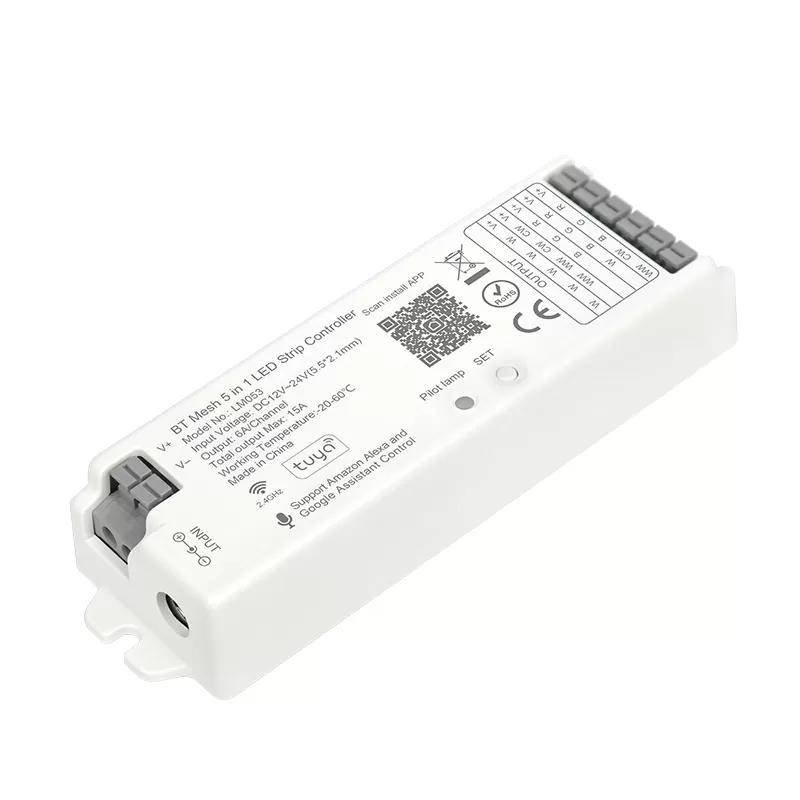

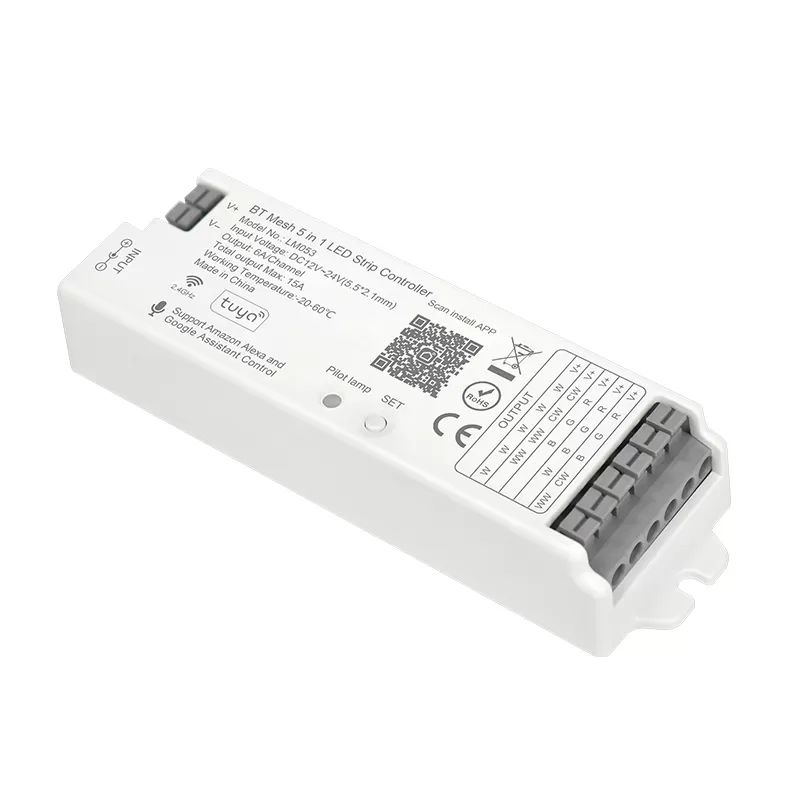

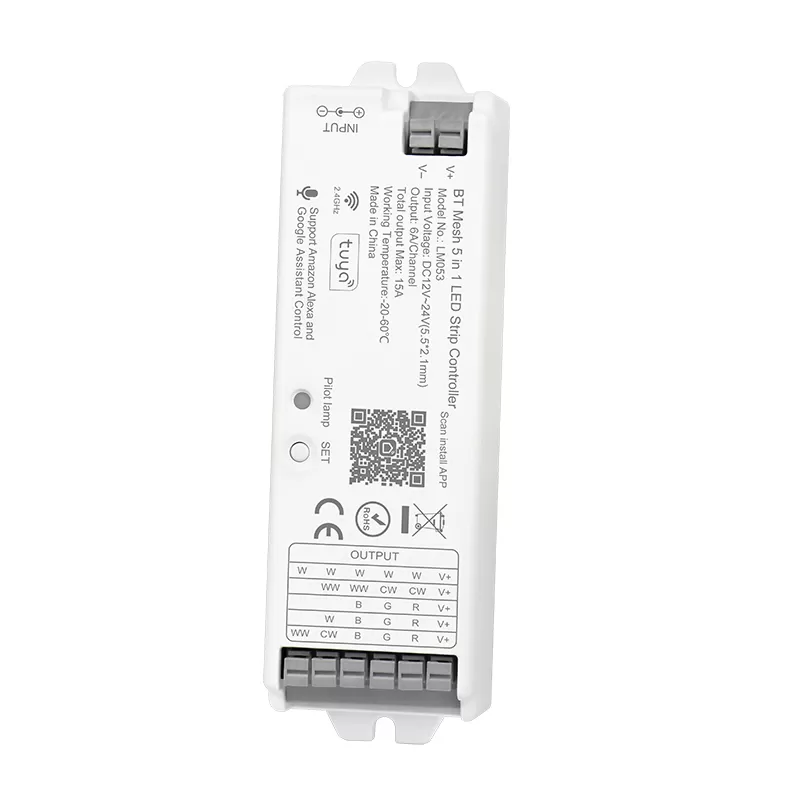

Bluetooth Mesh 5 in 1 LED Controller

Suitable for single color, CCT, RGB, RGBW, RGBCCT 5 kinds of LED strip.
Adopting the Bluetooth Mesh standard protocol.
Controlled by Tuya APP directly, for some advanced functions like timer, voice control need to work with a Bluetooth Mesh gateway.
Compatible with our 2.4G RF remote control.
Switching 5 output mode via the SET button (Single color / Dual white/ RGB/ RGBW/ RGB+CCT)

Parameters of BT Mesh 5 in 1 LED Controller

Model No.	LM053
Ouput Mode	DIM/CCT/RGB/RGBW/RGBCCT
Input Voltage	DC12-24V
Input Current	Wiring connection port: 15A/DC socket: 5A
Output Voltage	DC12-24V
Output Current	6A/CH, 15A MAX
Output Power	180W@12V, 360W@24V
Output Type	Constant Voltage
Input Signal	Bluetooth mesh+2.4G RF
Control Distance	APP remotely control/30M by remote
Dimming Range	1%~100%
PWM Frequency	1000Hz
IP Rating	IP20
Warranty	3-year
Certification	CE, RoHs, FCC, UKCA
