Suitable for DC5-24V RGB PWM LED strip.
2.4G RF wireless transmission technology.
16 million colors are available for selection.
Brightness and saturation are adjustable.
Control distance: 30M

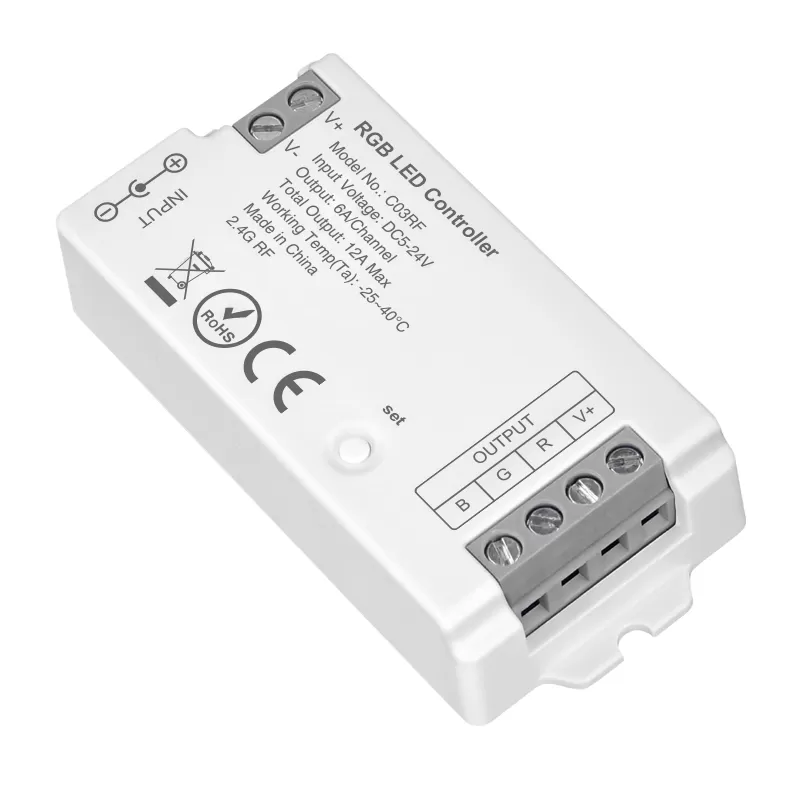

Model No. | C03RF |
Input Voltage | DC5-24V |
Input Current | Wiring connection port: 12A/DC socket: 5A |
Output Voltage | DC5-24V |
Output Current | 6A/CH, 12A MAX |
Output Power | 5V@60W, 12V@144W, 24V@288W |
Output Type | Constant Voltage |
Input Signal | 2.4GHz |
Control Distance | 30M |
Dimming Range | 1%~100% |
PWM Frequency | 500Hz, 2KHz(default) adjustable |
IP Rating | IP20 |
Warranty | 3-year |
Certification | CE, RoHs, FCC, UKCA |
