EN
Suitable for RGBCCT PWM LED strip.
Adopting the Zigbee 3.0 standard protocol.
Controlled by APP, need to work with a Zigbee gateway.

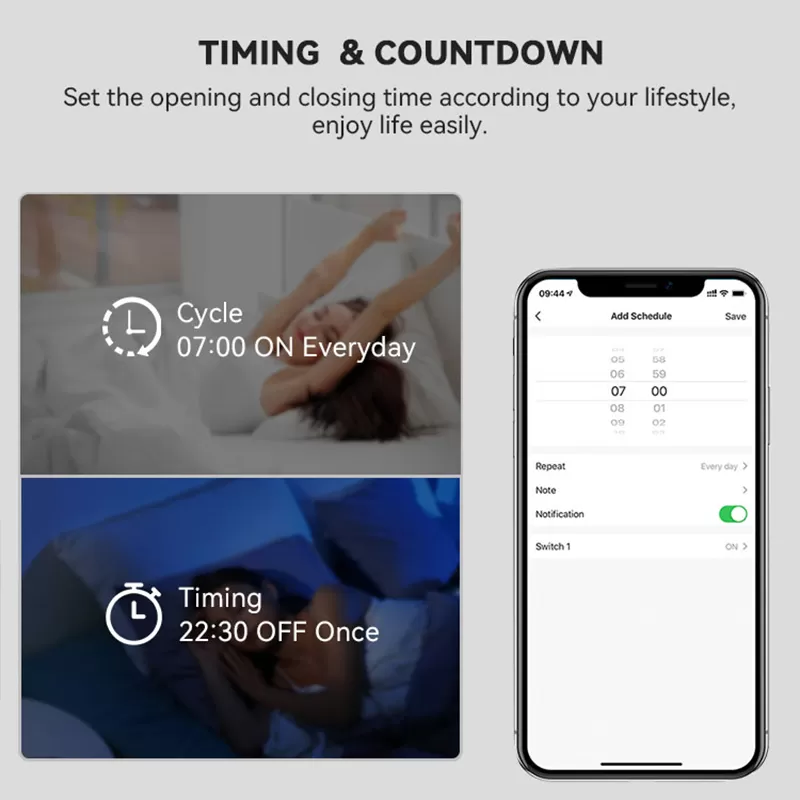

Multiple intelligent functions like timer, device sharing, voice control etc.

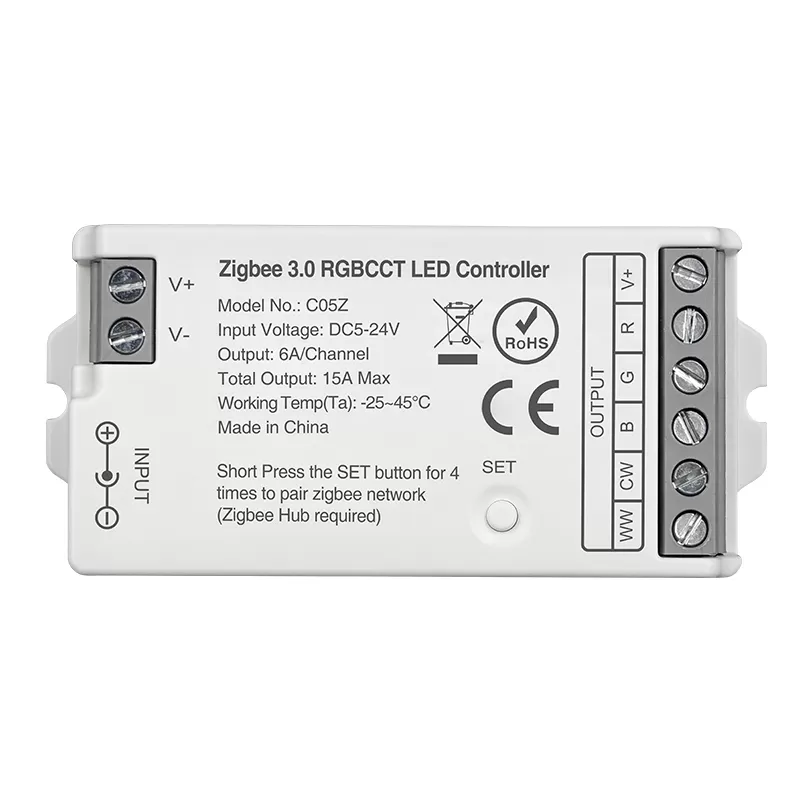

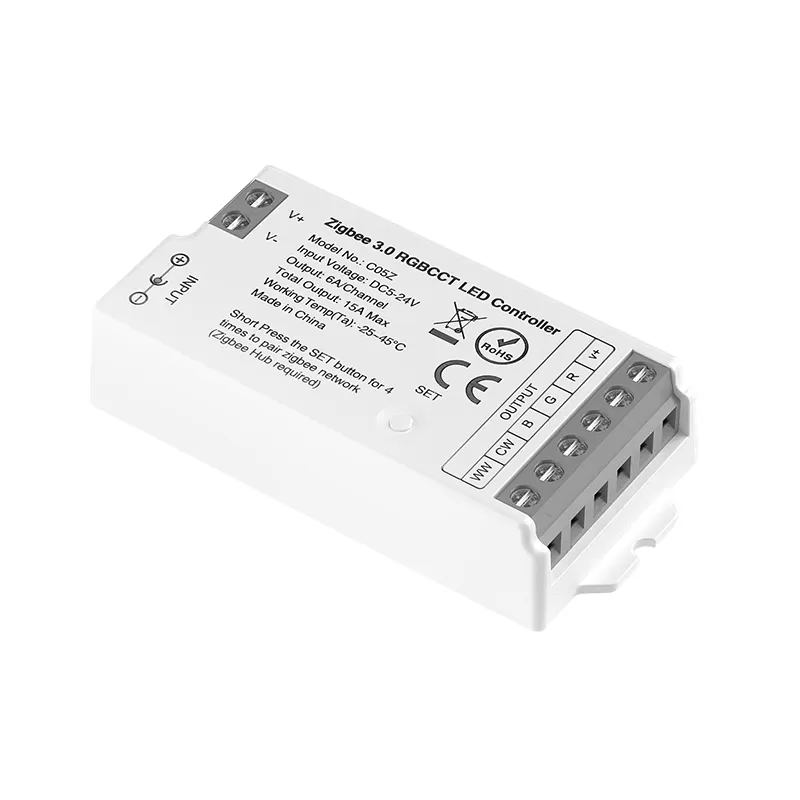

Model No. | C05Z |
Input Voltage | DC5-24V |
Input Current | Wiring connection port: 12A/DC socket: 5A |
Output Voltage | DC5-24V |
Output Current | 6A/CH, 15A MAX |
Output Power | 60W@5V, 180W@12V, 360W@24V |
Output Type | Constant Voltage |
Input Signal | Zigbee3.0 |
Control Distance | remote comtrol work with Zigbee gateway |
Dimming Range | 1%~100% |
PWM Frequency | 1000Hz |
IP Rating | IP20 |
Warranty | 3-year |
Certification | CE, RoHs, FCC, UKCA |
