Suitable for single color, CCT, RGB, RGBW, RGBCCT 5 kinds of LED strip.

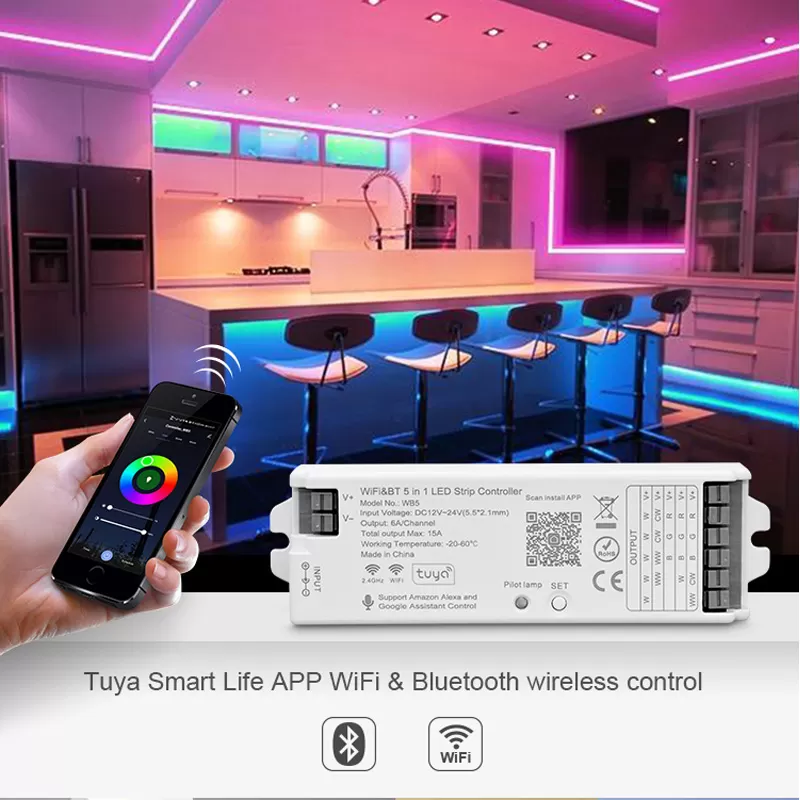

Controlled by APP directly.
Multiple intelligent functions like timer, device sharing, voice control etc.
Compatible with our 2.4G RF remote control.
Switching 5 output mode via the SET button (Single color / Dual white/ RGB/ RGBW/ RGB+CCT)

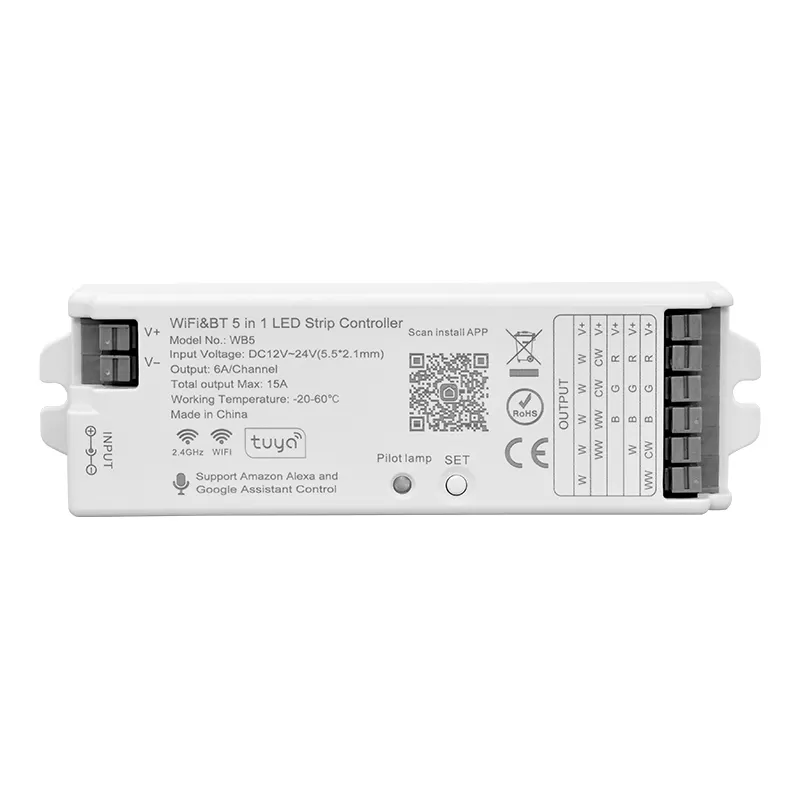

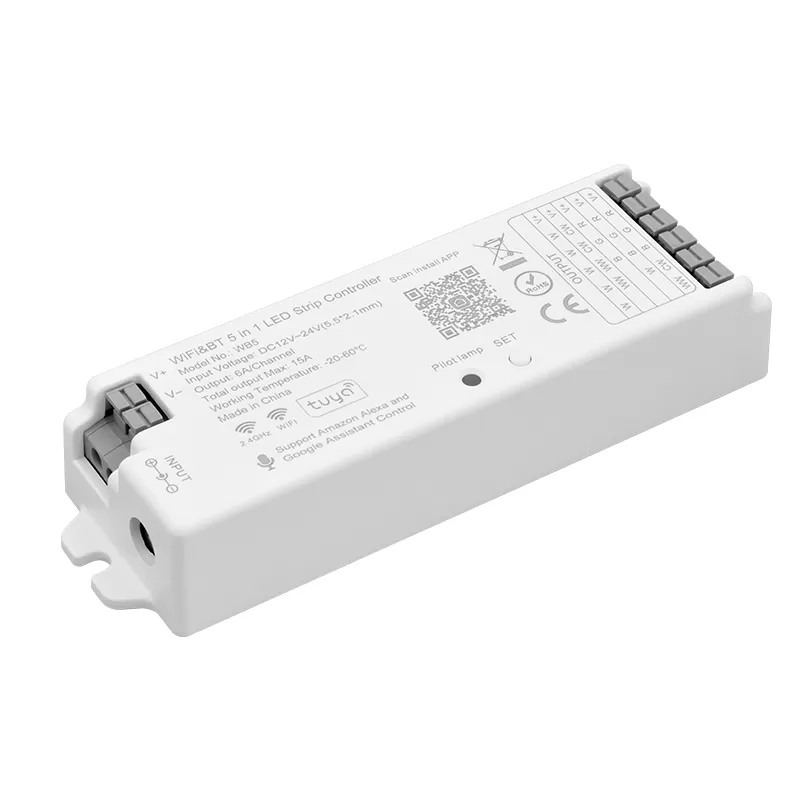

Model No. | WB5 |
| Output Mode | DIM/CCT/RGB/RGBW/RGBCCT |
| Input Voltage | DC12-24V |
Input Current | Wiring connection port: 15A/DC socket: 5A |
Output Voltage | DC12-24V |
Output Current | 6A/CH, 15A MAX |
Output Power | 180W@12V, 360W@24V |
Output Type | Constant Voltage |
Input Signal | WiFi+2.4G+Bluetooth |
Control Distance | APP remotely control/30M by remote |
Dimming Range | 1%~100% |
PWM Frequency | 1000Hz |
IP Rating | IP20 |
Warranty | 3-year |
Certification | CE, RoHs, FCC, UKCA |
1-Zone RF RGBCCT LED Remote
View More
4-Zone RF RGBCCT LED Remote
View More
6-Zone RGBCCT LED Remote
View More

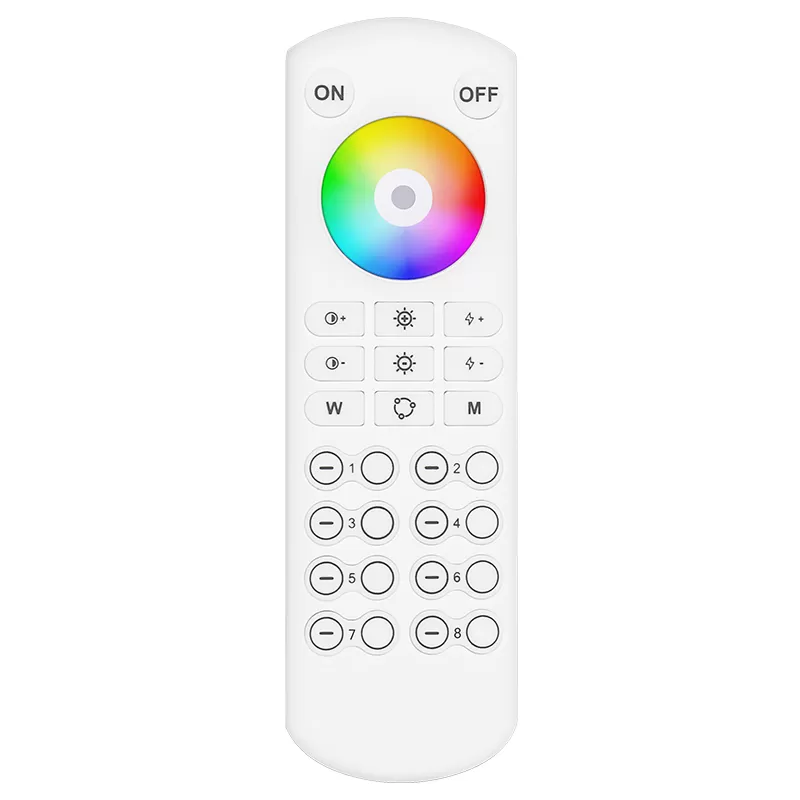

8-Zone RGBCCT LED Remote
View More
8-Zone RGBCCT LED Remote(150M Control Distance)
View More

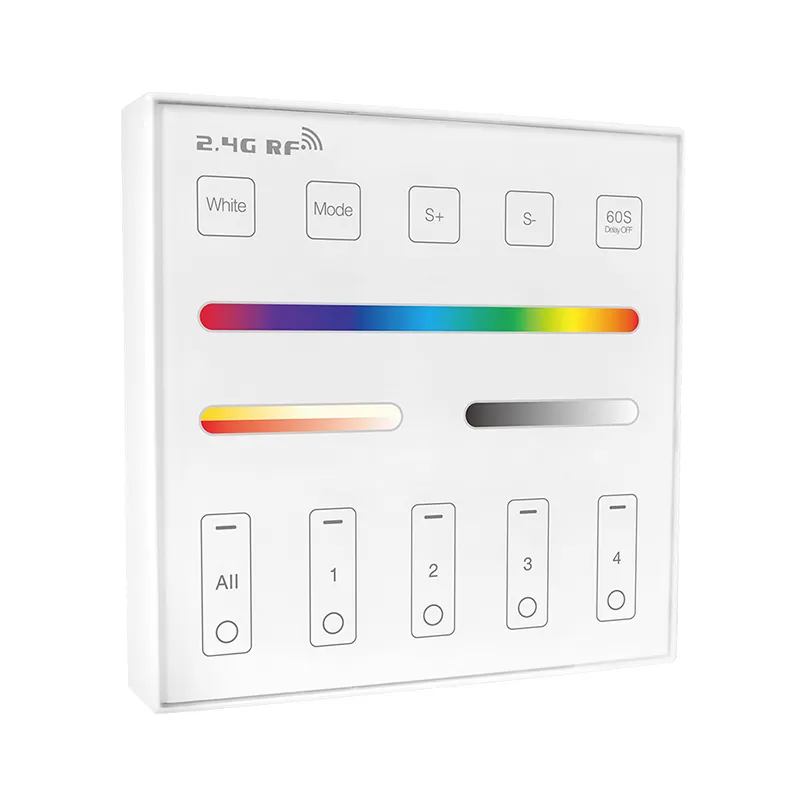

4-Zone RF RGBCCT Wall Mounted Panel LED Remote
