Suitable for single color and CCT PWM LED strip.
20KHz high PWM dimming frequency without noise and flicker issue.
Support Push Dim.
Controlled by Tuya APP directly with multiple intelligent fucntions like timer, voice control etc.
Switching 2 output mode via the SET button(single color/CCT)
Support our 2.4G remote control.

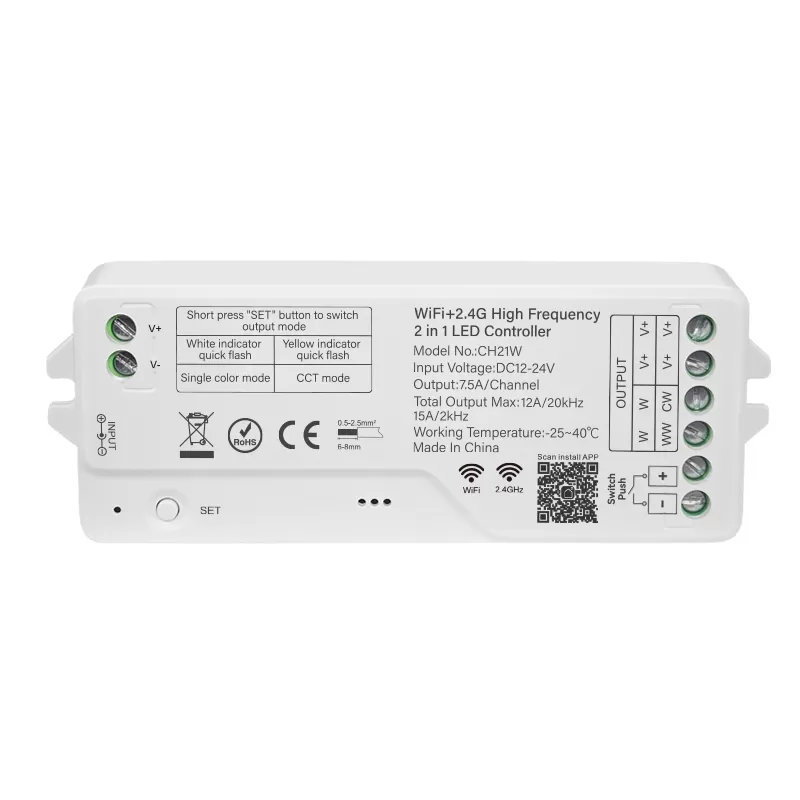

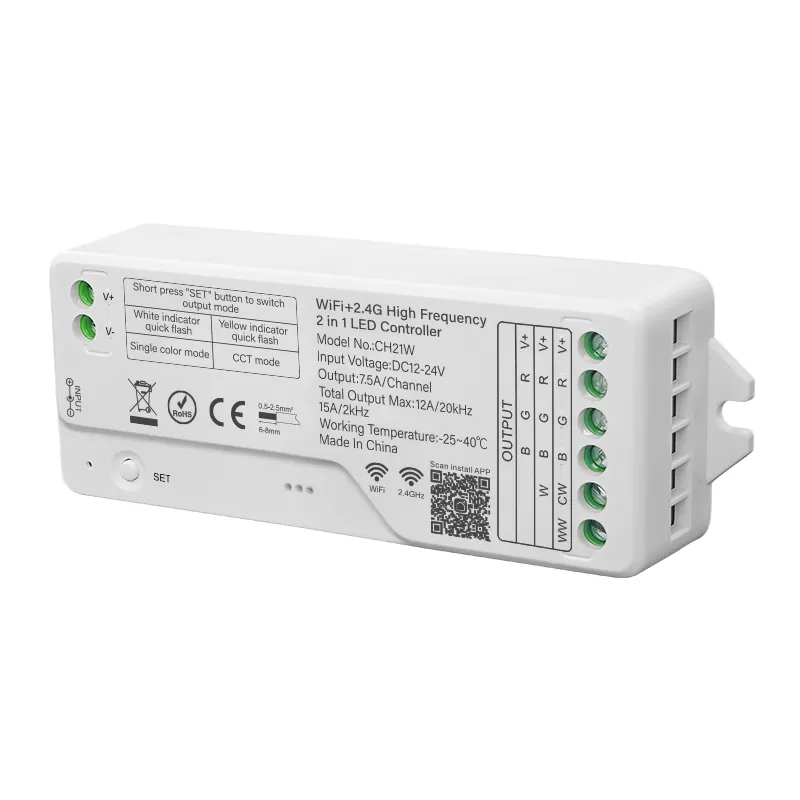

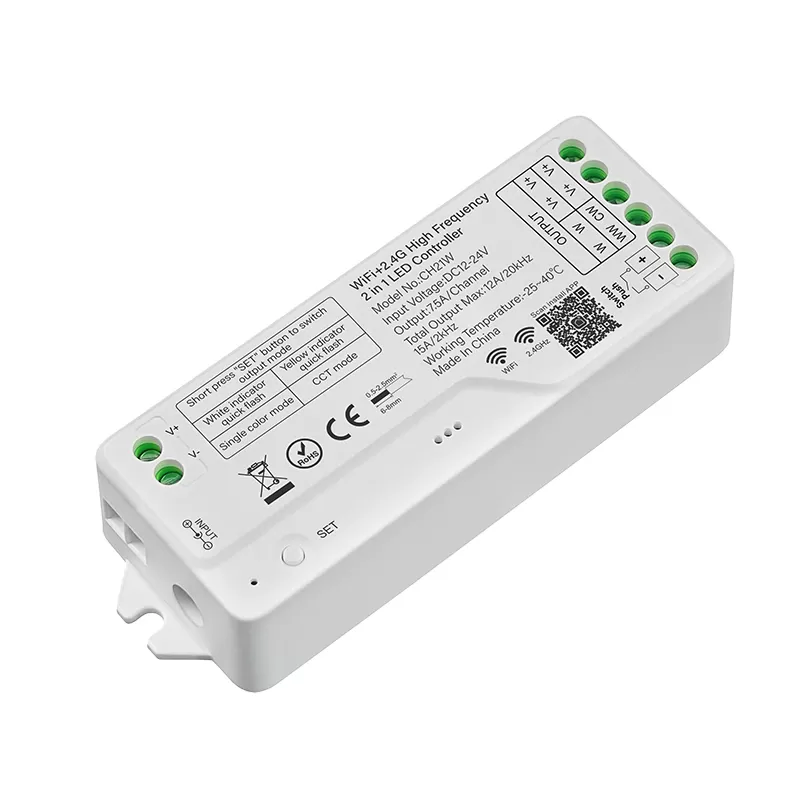

Model No. | CH21W |
| Output Mode | Single color/CCT |
| Input Voltage | DC12-24V |
Input Current | Wiring connection port: 12A/DC socket: 4A |
Output Voltage | DC12-24V |
Output Current | 15A@2KHz, 12A@20KHz |
Output Power | DC24V: 360W@4KHz, 288W@20KHz DC12V: 180W@4KHz, 144W@20KHz |
Output Type | Constant Voltage |
Input Signal | WiFi+2.4GHz+Bluetooth |
Control Distance | APP remotely control/ 30M by RF remote |
Dimming Range | 1%~100% |
PWM Frequency | 4KHz, 20KHz(default) adjustable |
IP Rating | IP20 |
Warranty | 3-year |
Certification | CE, RoHs, FCC, UKCA |
