Suitable for RGB/RGBW/RGBCCT PWM LED strip.
20KHz high PWM dimming frequency without noise and flicker issue.
Controlled by Tuya APP directly with multiple intelligent fucntions like timer, voice control etc.
Switching 3 output mode via the SET button(RGB/RGBW/RGBCCT).
Support our 2.4G remote control.

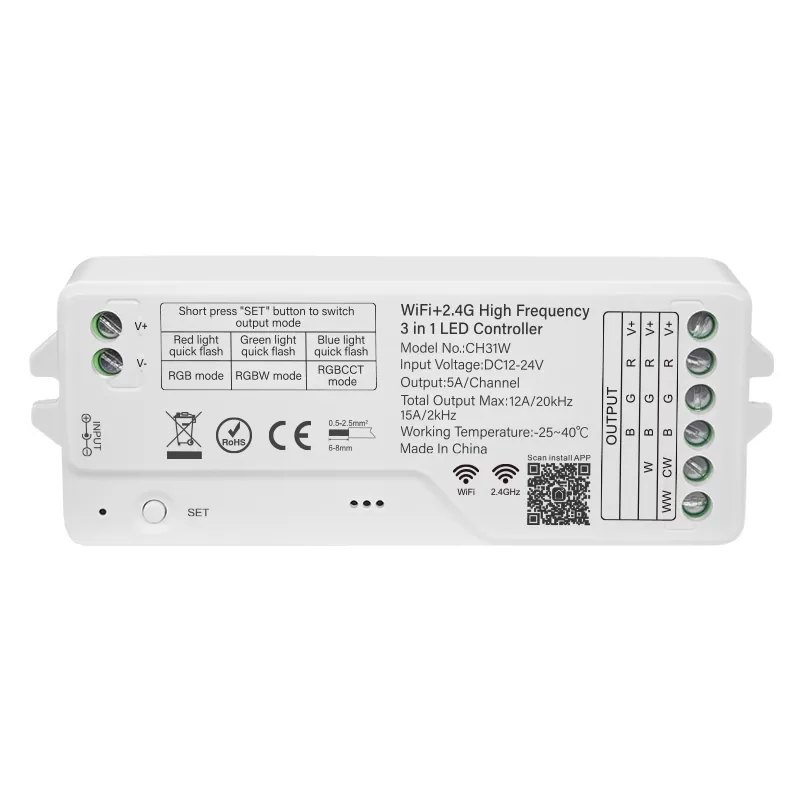

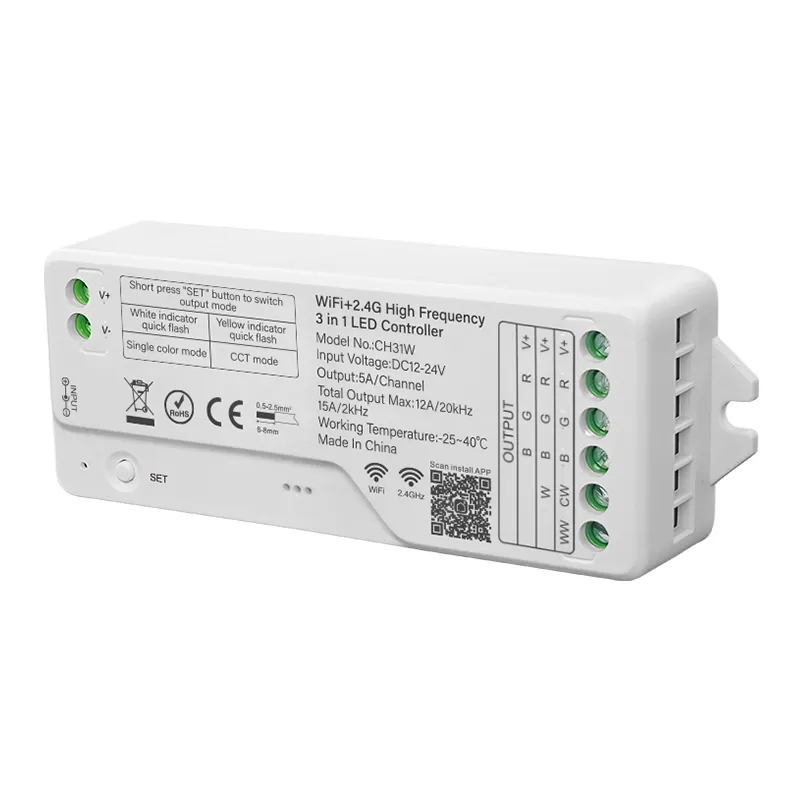

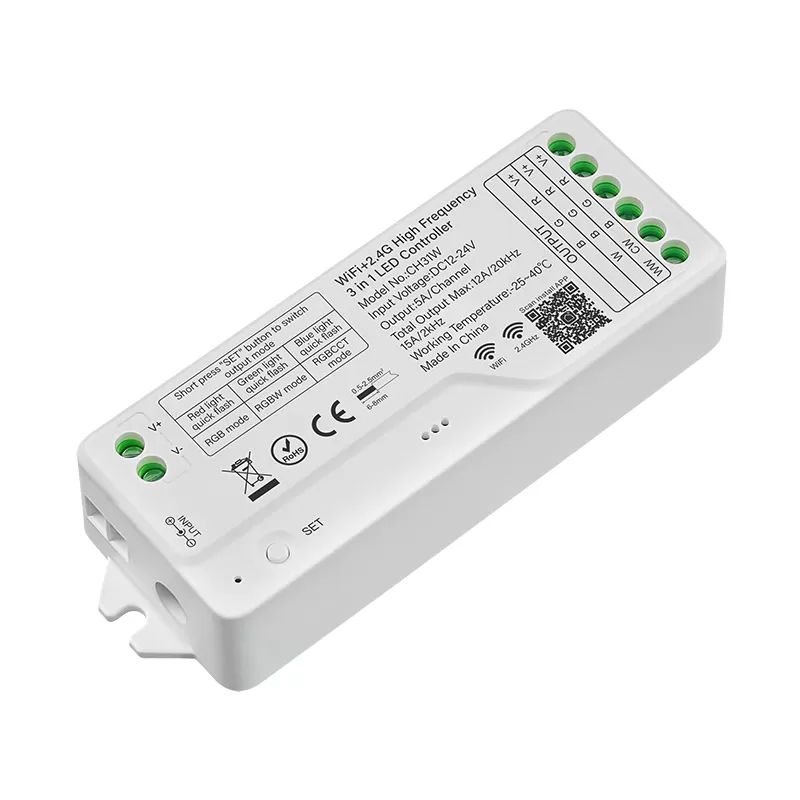

Model No. | CH31W |
| Output Mode | RGB/RGBW/RGBCCT |
| Input Voltage | DC12-24V |
Input Current | Wiring connection port: 12A/DC socket: 4A |
Output Voltage | DC12-24V |
Output Current | 15A@2KHz, 12A@20KHz |
Output Power | DC24V: 360W@4KHz, 288W@20KHz DC12V: 180W@4KHz, 144W@20KHz |
Output Type | Constant Voltage |
Input Signal | WiFi+2.4GHz+Bluetooth |
Control Distance | APP remotely control/ 30M by RF remote |
Dimming Range | 1%~100% |
PWM Frequency | 4KHz, 20KHz(default) adjustable |
IP Rating | IP20 |
Warranty | 3-year |
Certification | CE, RoHs, FCC, UKCA |
